异型橡胶管

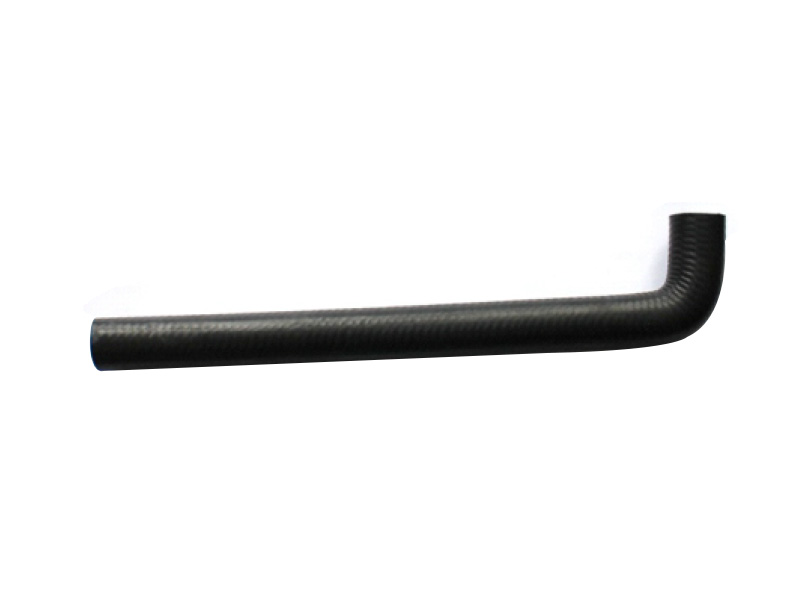

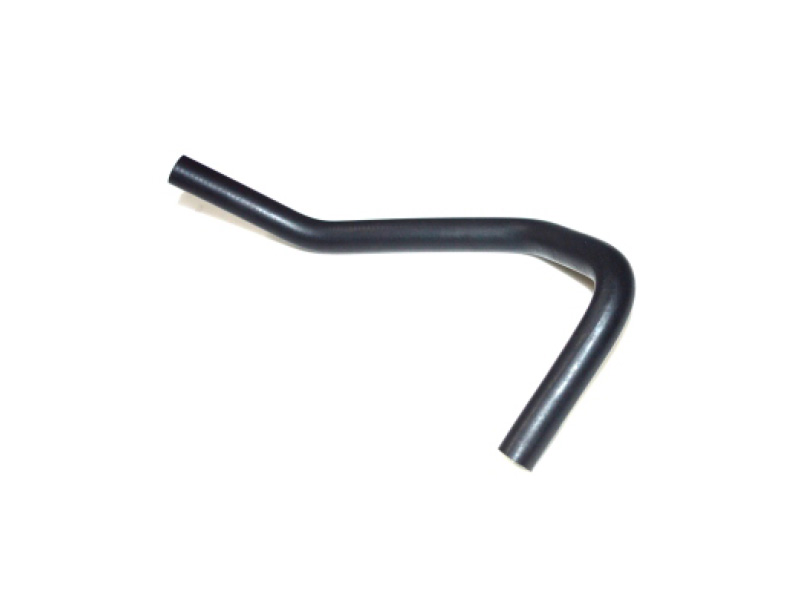

ELBOW HOSE SERIES
  • ELBOW HOSE SERIES

ELBOW HOSE SERIES

Product hardness: SA50°-90° ±5°

Usage temperature: -40°C-200°C

Product advantages:shape diversification, corrosion resistance, high pressure resistance, high and low temperature resistance, excellent weather ability, good flexibility. Suitable for water supply pipe, steam pipe, air hose,

welding pipe, gas pipe, vent pipe, material pipe, oil pipe, chemical pipe, high pressure pipe, oil brake tubing, vacuum tube, etc.

Spec Tolerance Spec Tolerance Environmental Protection Material
2X4 ±0.2 14X22 ±0.5 ROHS
REACH
HFFR
VOC
EPDM
CIIR
BIIR
NR
IR
BR
CR
MVQ
FKM
Polyester fiber
Aramid fiber
3X6 ±0.2 18X26 ±0.5
4X8 ±0.2 20X28 +0.5
5X10 ±0.2 22X30 ±0.8
6X12 ±0.3 24X30 ±0.8
8X14 ±0.3 26X32 ±0.8
9X14 ±0.3 28X36 ±0.8
9X16 ±0.5 32X42 ±1.5
10X18 ±0.5 36X46 ±1.5
12X20 ±0.5 40X50 ±1.5
Product material, dimensions, specifications, hardness, braided wire color, diameter, knitting spindle can be developed and manufactured according to customer technical requirements.
